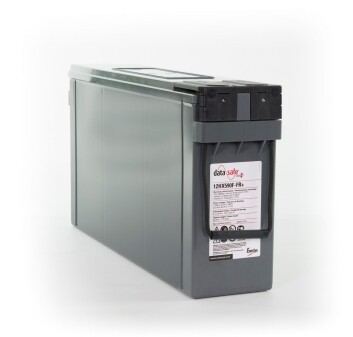

Datasafe 12HX590F-FR+ 12V 163Ah Full Maintenance Free Dry Type AGM Battery

Enersys DataSafe HX Plus Series are batteries with outstanding advantages and performance with a design life of +12 years and advanced Thin Plate Pure Lead (TPPL) technology in Eurobat standards. TPPL technology provides DataSafe HX+ batteries with excellent energy density, long design life and fast recharging, while reducing energy consumption and processing costs compared to conventional lead acid batteries.


-Long design life
-Low self-discharge characteristic
-High Discharge power
-Wide operation Temperature
-Conforms to IEC, JIS, BS and YDT standards

Voltage : 12V
Capacity : 28.0Ah@20hr-rate to 1.75V per cell @25℃
Terminal : F3(M5)/F13-BP(M5)T24(M5)
Dimensions : 166 x 176 x 176 x 125* mm (Width x Length x Load)
Weight : Approx. 8.10 Kg (Tolerance±3.0%)
Internal Resistance : Approx. 11.0 mΩ
VRLA Technology

*Total height including terminals
