The Ritar DG (Deep Cycle GEL) series are pure gel batteries with a design life of 15 years. Suitable for use in standby or charge-discharge applications in harsh environments.
With a wide range of capacities from 33Ah to 3000Ah in 2V, 6V and 12V options, the Ritar DG Series offers excellent recovery capability after deep discharge under frequent charge-discharge use, utilizing a strong plate structure, high-strength lead and patented Gel electrolyte, and can deliver 450 cycles at 100% depth of discharge.
-Long Life
Minimized self-discharge with Low Internal Resistance
-High Discharge power
-Wide operation Temperature
-Conforms to IEC, JIS, BS and YDT standards

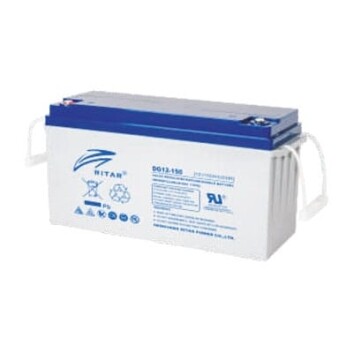

Voltage : 12V
Capacity : 150Ah@20hr-rate to 1.75V per cell @25℃
Terminal : F12(M8)/F5(M8)
Dimensions : 483 x 170 x 241* mm (Width x Length x Load)
Weight : Approx. 44.0 Kg (Tolerance±3.0%)
Internal Resistance : Approx. 6.0 mΩ
VRLA Pure Gel Technology
*Total height including terminals
