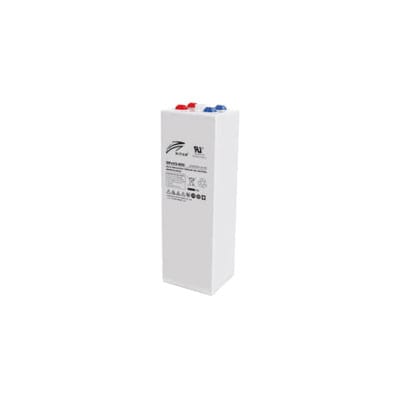

Ritar OPzV Series are completely maintenance-free VRLA Pure Gel batteries designed for high performance, low maintenance cost and sustainable long service life with Tubular Plate technology and immobile Pure Gel construction.
Designed and manufactured according to DIN standards with patented special active material formula and die-cast positive grid. The Ritar OPzV series exceeds DIN standard values with a design life of over 20-25 years at 25°C and provides excellent performance in cyclic use under extreme operating conditions.
-Patented special formula
-Ultra Long Life
-Over 94% charge-discharge efficiency
-100% recyclable construction
-High energy storage density per unit area
Voltage : 2V
Capacity : 770Ah@10hr-rate to 1.80V per cell @25℃
Terminal : F10(M8)
Dimensions : 210 x 254 x 505* mm (Width x Length x Load)
Weight : Approx. 55.0 Kg (Tolerance±3.0%)
Internal Resistance : Approx. 0.62 mΩ
Maximum charging current : 154.0 A
VRLA Pure Gel Technology
*Total height including terminals
